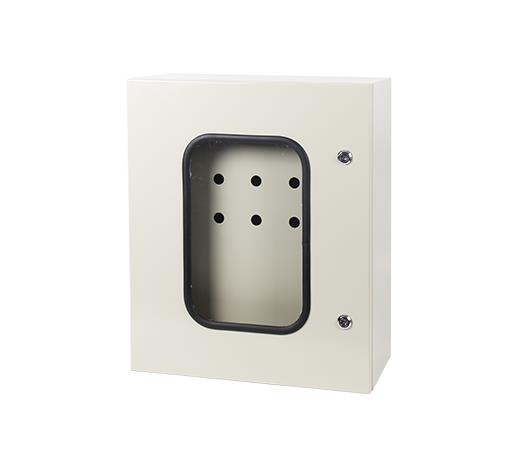

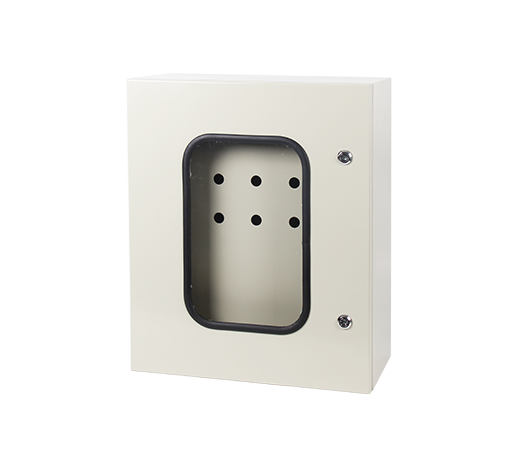

Glass door + inner door distribution box

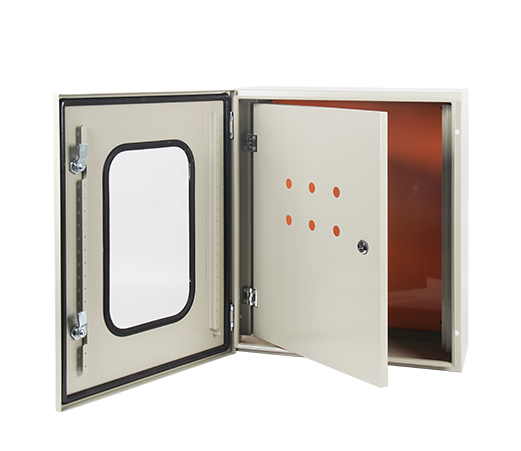

Toughened glass door + inner door wall mount enclosure(STIP)

Supply include: enclosure and door with glass,inner door,with lock system, galvanised mounting

plate,gland plate, sealing gasket and fixing accessories.

inner door: 1.2mm

Color: RAL 7032 or RAL 7035,paint finish epoxy polyester powder coating textured finish

Protection degree: IP 66 Against mechanical impacts:IK10

Enclosure & door sheet steel 1.2mm till size STIP6 820 then 1.5mm, mounting plate:zinc-coated

steel 1.5mm till size STIP6 820 then 2.0mm, plexiglass door 4.0mm,

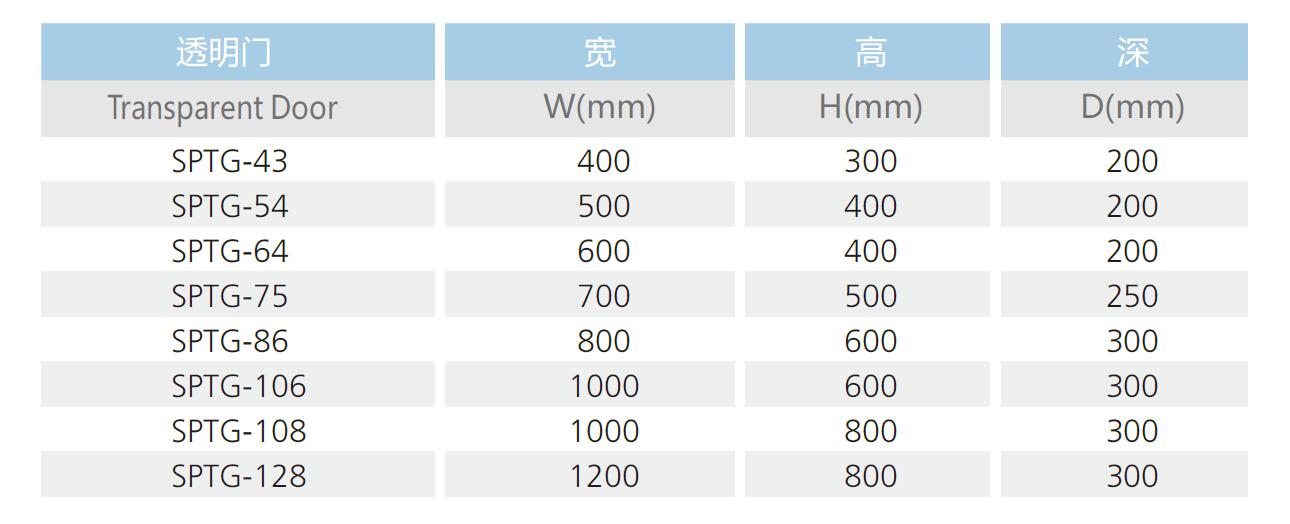

Technical Data
